Kit Includes:

Qty 2 1U mounting ears black anodized .090″ aluminum for XG-7100, RCC-2758, 8860 and 4860 1U systems P/N 2015-007-03-01 Rev A

Qty 6 #6-32 x 3/8″ Phillips Flat Head Machine Screw Black Zinc

WALL MOUNT KIT FOR NETGATE 4100/6100 PFSENSE® PLUS SECURITY GATEWAY APPLIANCES

Mounting kit that enables simple, safe and fast installation of the Netgate 6100 and Netgate 4100 Security Gateway Appliance to the wall. A pair of wall brackets that use two screws each to attach to the Netgate 4100/6100 system.

KIT INCLUDES:
8x drywall anchors
4x Bolts
8x screws

*Due to the variety of wall types, the screws and the wall plugs are not included in the kit. Please select the suitable fixing you need to fix this system to the wall.

Please make a note of your serial numbers and any other additional information on the bottom of your system before affixing the system to the wall. This information will be unreadable once the system is mounted on the wall. Please take a picture of the information or write it down for future reference.

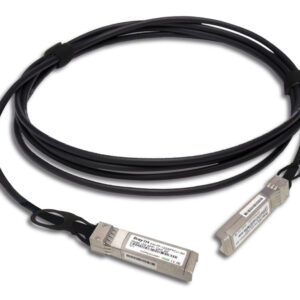

10G SFP+ DIRECT-ATTACH COPPER TWINAX PASSIVE CABLE 3 METER

SFP+ Copper Twinax cable suitable for very short distances.  This SFP+ direct attach twinax cable assembly supports 1-10 Gigabit Ethernet, 1-8G Fiber Channel and other industrial standards.  Suitable for networking, storage, and telecom industries.  Used in applications such as data center cabling infrastructure, SAN, NAS, other storage servers, 1G/2G/4G/8G Fiber channels.

FEATURES

• SFP+ to SFP+ Connector
• Copper Passive
• 3 Meter
• AWG24/AWG30
• Compliant to SFP MSA
• Generic for use with the Chelsio T520-SO-CR or T520-CR, or similar MSA manufacturer*.
• Low power consumption
• RoHS Compliant

*Some equipment manufacturers engage in vendor lock-in practices that require you to source their particular cable.  They deliberately break compatibility with “generic” SFP+ cables by adding a firmware check to enable their own cables and modules.  If you will be connecting to a Cisco, HP-Procurve, H3C/3COM, Brocade, etc. you may need a different cable.

THE 1U RACK MOUNT KIT ENABLES SIMPLE, SAFE, AND FAST INSTALLATION OF THE NETGATE 4100 OR NETGATE 6100 SECURITY GATEWAY APPLIANCE INTO A STANDARD 19″ SERVER RACK.

The Netgate 4100/6100 family of appliances are passively cooled to ensure silent operation when used in a desktop or rack mount configuration. This is a purpose-built rack mount system designed and manufactured specifically to:

Fit entirely within the 1U height envelope.
Allow for other devices to be mounted directly above or below the Netgate system.
Maximize critical airflow through the 4100/6100’s integrated chassis heatsink.
Move access to the USB jacks from the side of the unit to the front faceplate, utilizing custom molded USB 3.0 cable to provide convenient remote access to the Netgate 4100/6100 USB ports.
Protect and conceal the USB cables and power supply with a removable faceplate, which prevents accidental disconnection while still allowing easy access.
Provide an attractive, lightweight, yet sturdy durable Type II anodized aluminum mounting system with laser engraved logo.
Securely install the Netgate 4100/6100 to the purpose built chassis with stainless steel screws via the 4 built-in mounting points.

KIT INCLUDES:
Anodized 5052 Aluminum rack mount bracket with detachable front faceplate
Panel mount USB 3.0 extension cable with hardware
4x main chassis screws
1x front faceplate screw
4x cable ties (2 large, 2 small)
