Description
The Netgate 1100 is a compact and affordable firewall appliance designed to provide reliable network security for home offices, small businesses, remote workers and branch office deployments. Powered by pfSense® Plus software, it delivers enterprise-grade firewall protection, secure VPN connectivity, advanced routing and traffic management in a silent, energy-efficient desktop appliance.
Built around the Marvell Armada 3720LP (88F3720) dual-core ARM Cortex-A53 processor at 1.2GHz, with 1GB DDR4 memory and 10.6GB eMMC onboard storage, the Netgate 1100 offers dependable performance for everyday networking tasks. Whether you are protecting your internet connection, creating secure VPN tunnels for remote users or segmenting your network with VLANs, the Netgate 1100 provides a reliable and cost-effective security solution.

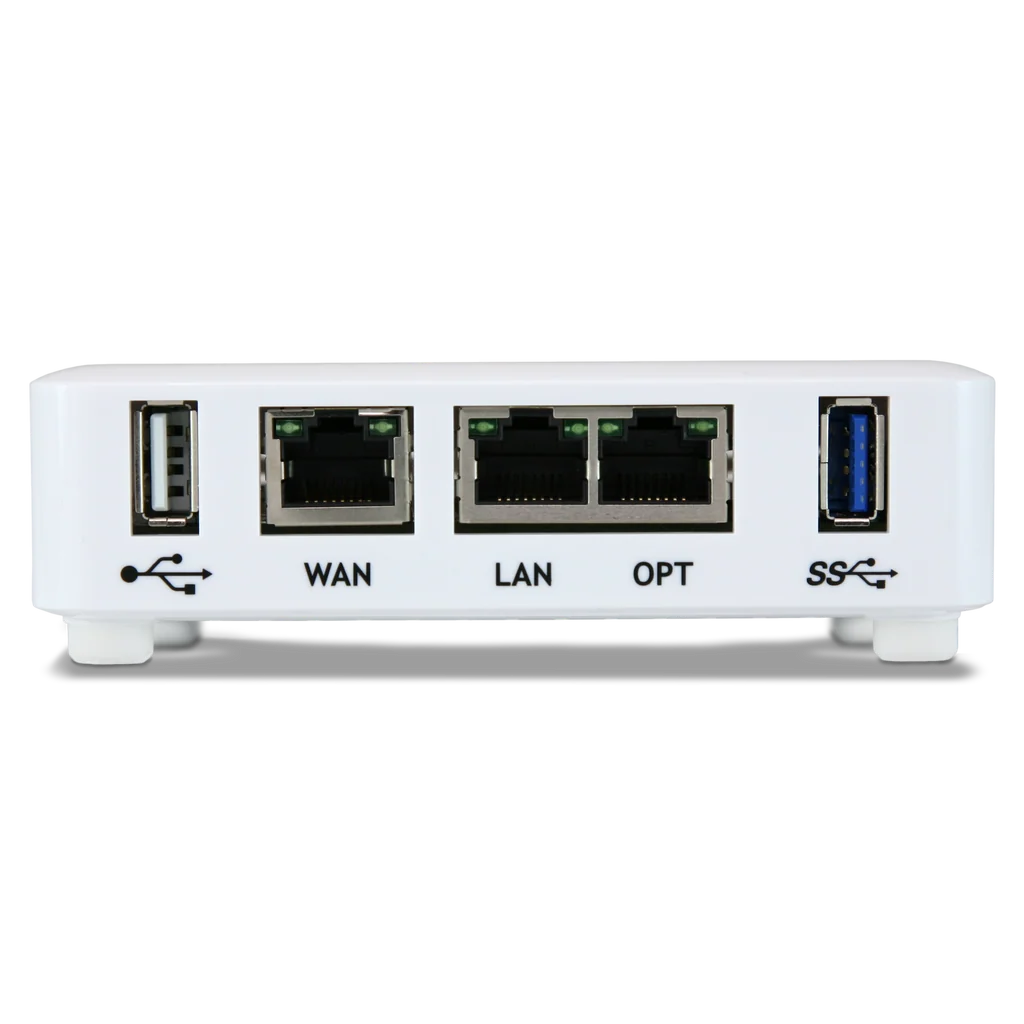

The appliance features three independent Gigabit Ethernet (1GbE) RJ45 ports, allowing flexible WAN and LAN configurations for a wide range of network environments. Its fanless design ensures completely silent operation, making it an excellent choice for offices, retail locations, home workspaces and other environments where quiet, dependable performance is essential.
Technical Specifications
| SoC | Marvell Armada 3720LP (88F3720) dual-core ARM Cortex-A53 processor at 1.2GHz |
|---|---|
| System Memory | 1GB DDR4 RAM onboard |
| Storage | 10.6GB eMMC storage |
| Network Interfaces | 1 × Marvell 88E6141 networking switch 3 × Gigabit Ethernet ports for WAN, LAN and OPT |
| Console Port | 1 × USB Micro-B console port |
| USB | 1 × USB 3.0 1 × USB 2.0 |
| Other Features | Reset button, heatsink and three status LEDs |
| Power | 12V 2A DC, 5.5mm × 2.1mm × 10mm jack, centre-pin positive. Power over USB is not supported. |
| Power Consumption | 3.48W at idle |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Enclosure | Plastic enclosure measuring 110 × 84.6 × 31.75mm (4.33 × 3.33 × 1.25 inches) |
| Hardware Warranty | One-year standard hardware warranty |
| Certifications | CE, FCC, RoHS, UKCA, NDAA and TAA |
Product Features
Low Total Cost of Ownership
- No artificial limits or add-ons are required to make your system fully functional.
- No additional usage-based or feature-based pricing. Enjoy unlimited users, firewall rules, IPsec tunnels, dual WAN and more.
- Low power requirements help reduce running costs.
- No moving parts to wear out, providing a long deployment lifetime.
Grows With You
- Use it as a firewall or a multifunction security gateway to protect your home or business.
- Flexible configuration with support for multi-WAN, VPN, load balancing, reporting and monitoring.
- Supports up to one million active connections.
Easy Web-Based Management
- Manage pfSense Plus settings through an intuitive web-based interface.
- No need to rely on a command-line interface or enter complex commands.
Secure Remote Access
- Create encrypted Virtual Private Network connections between offices, mobile workers and cloud services.
- Use the built-in Amazon VPC Wizard to establish VPN connections with Amazon EC2.
Best For
- Home users
- Remote workers
- Small to medium-sized business networks
- Small to medium-sized branch offices
- Managed Service Provider and Managed Security Service Provider deployments
Additional Information
- Not compatible with Power over Ethernet.
- Does not support mSATA or LTE cards.
- Includes a 3-foot USB Micro-B to USB-A console cable.
Warranty and Support
- Technical assistance is available from Netgate Global Support 24 hours a day, 365 days a year.
- TAC Lite is included with the purchase of your Netgate appliance.
- TAC Professional and TAC Enterprise support plans are also available.
- Additional help is available through the Netgate Community Forum.
- One-year manufacturer's hardware warranty.
- Standard 30-day return policy. Telappliant does not sell returned or second-hand products. An open-box fee may apply.
- All specifications are subject to change without notice.
Why Choose the Netgate 1100?
- Up to five times the packet-processing performance of the Netgate SG-1000.
- 64-bit ARMv8 networking platform.
- Based on the popular Marvell ESPRESSObin design.
- Secured with pfSense Plus software.
- Equipped with a Microchip® CryptoAuthentication device, providing assurance that the system is running authentic and unaltered pfSense Plus software.
- Cost-effective and energy-efficient.
- Sleek and compact enclosure.
- Quiet, fanless operation.
- Optional DIN rail and wall-mount kits are available.
