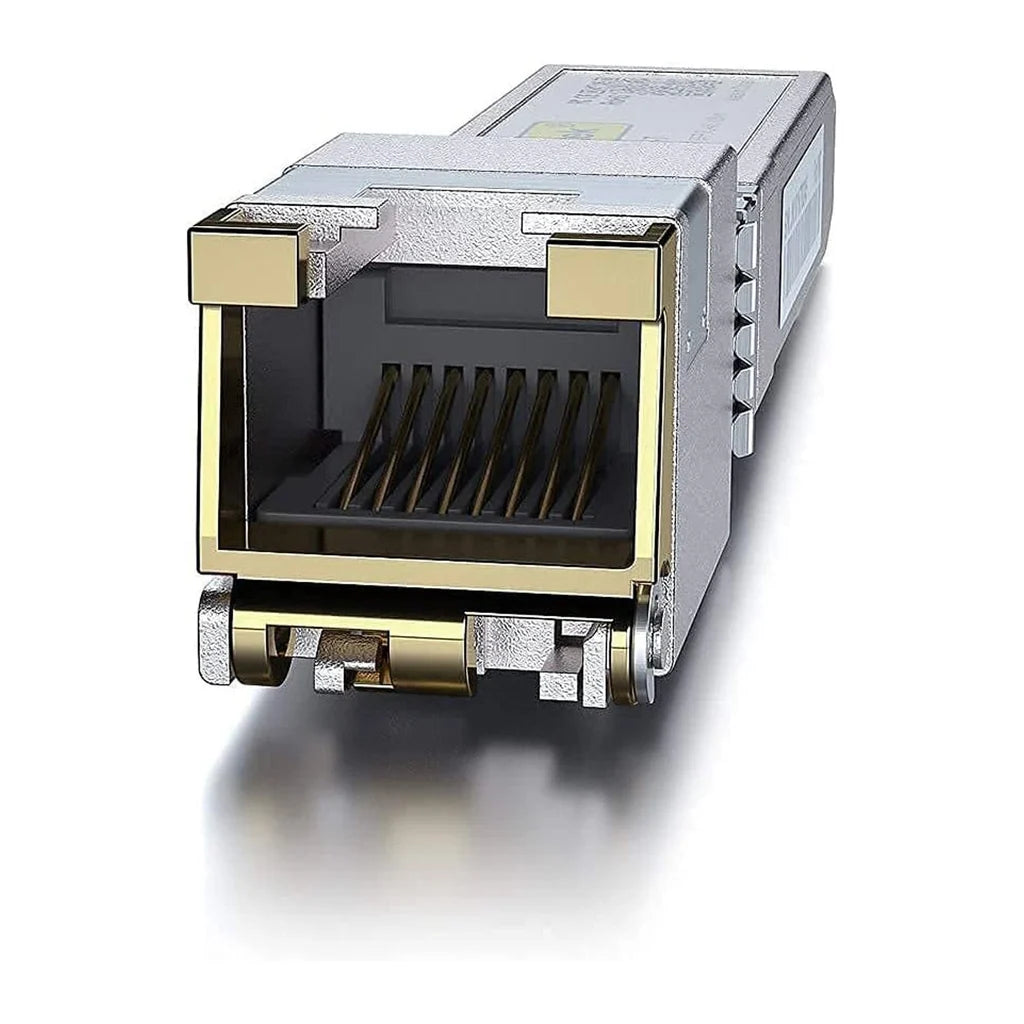

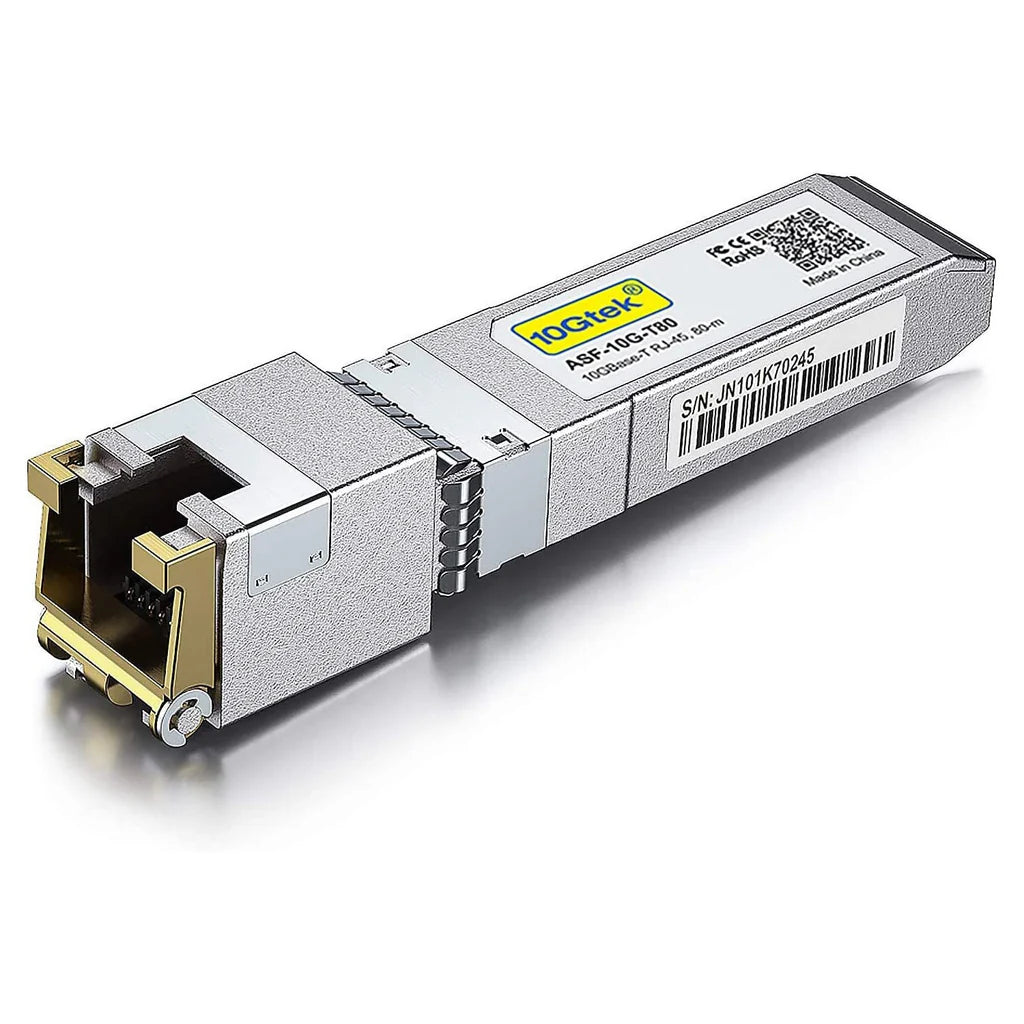

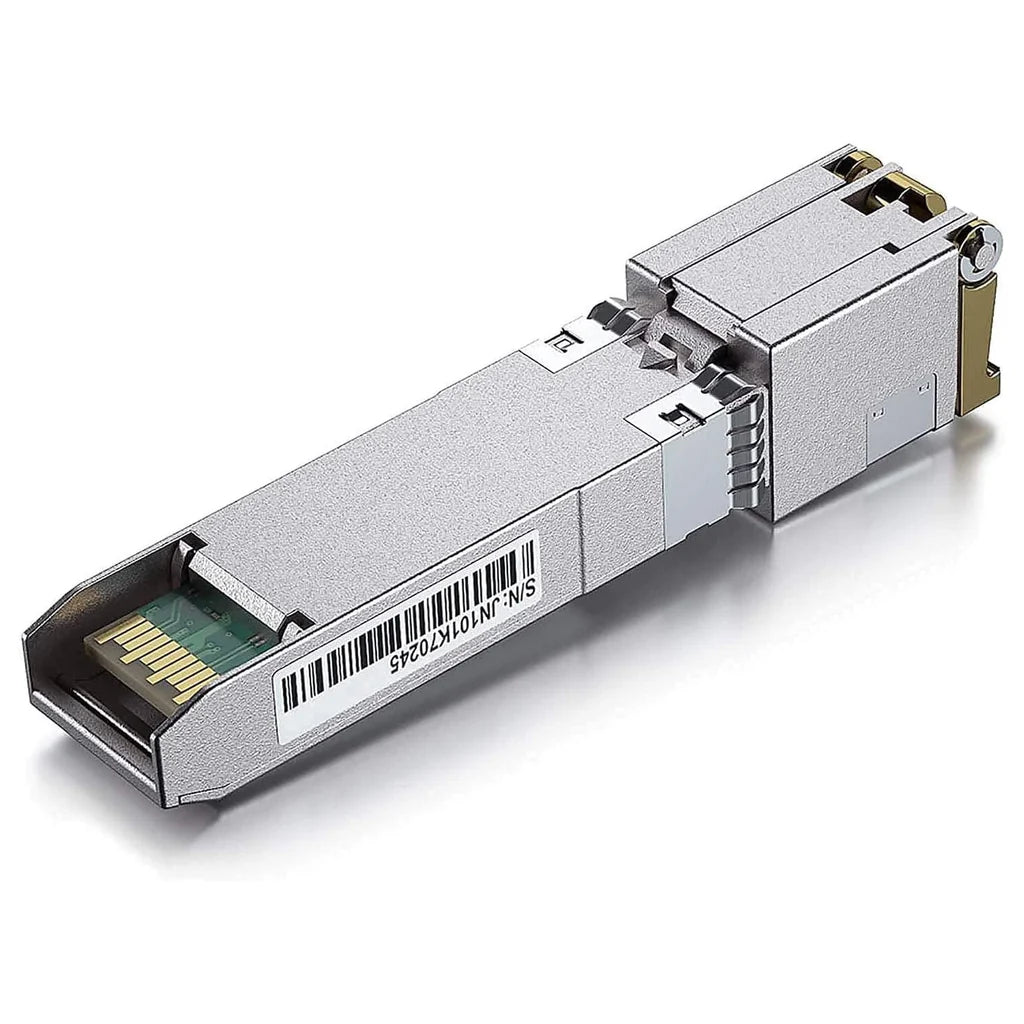

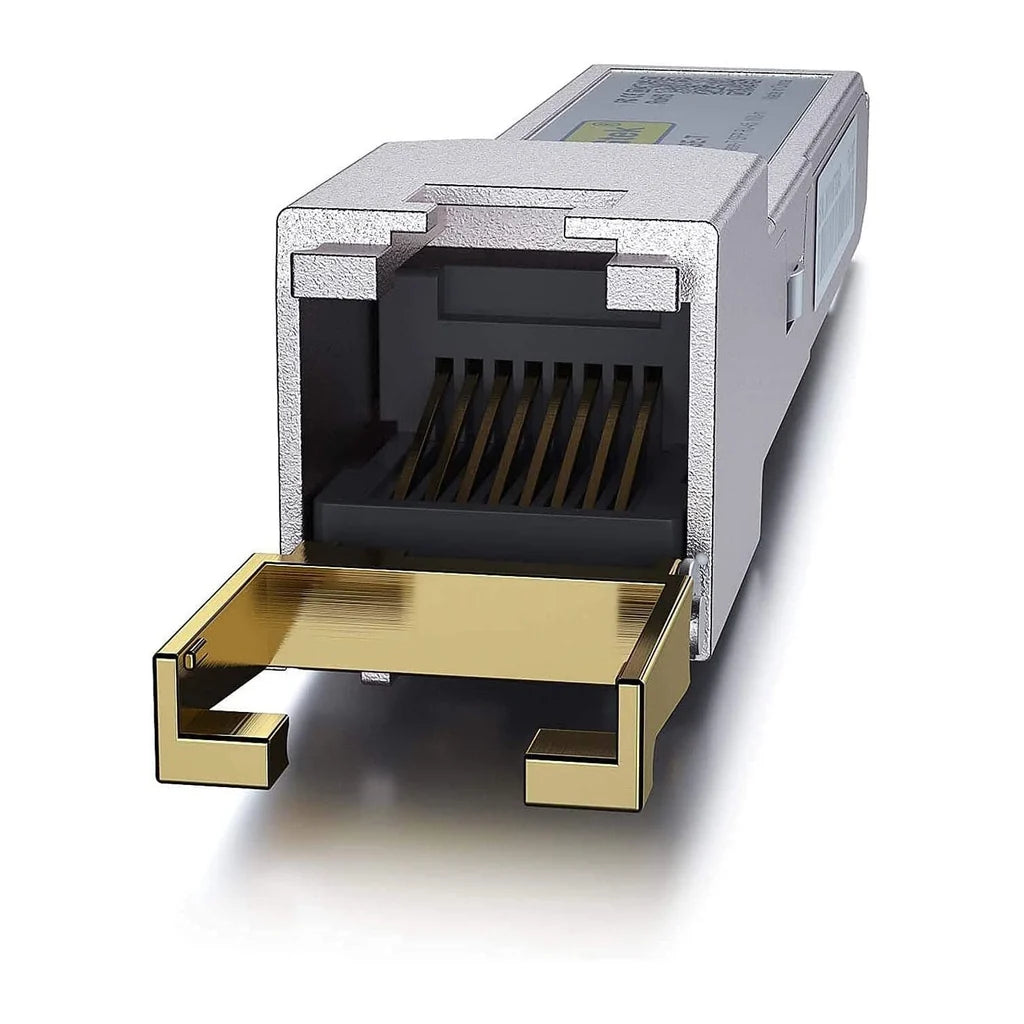

SFP+ 10GB/S TRANSCEIVER, 10GBASE-T, 80M

FOR USE WITH NETGATE 6100, 8200, 8300, 1537, AND 1541 SECURITY GATEWAYS

The ASF-10G-T80 is a 10GBase-T multi-rate Copper RJ45 SFP+ transceiver. Equipped with a BROADCOM BCM84891 PHY chip, the ASF-10G-T80 offers ultra low power consumption and longer transmission distance (1.6W 10Gbps 30m，2.0W 10Gbps 80m).

Key Features

• SFP+ transceiver module
• Broadcom BCM84891 PHY chip
• 10GBase-T*
• RJ-45 interface
• Operating data rate up to 10.3Gbps
• Transmission distance up to 80m
• Supports DOM
• Operating Case Temperature Standard: 0°C ~ +70°C (32°F ~ 158°F)

Applications

• 10GBASE-T Ethernet
• CAT.6a / CAT.7


Compliance Information

• Compliant with MSA SFP+ specification
• Compliant with IEEE 802.3an/az


SUPPORT AND WARRANTY INFORMATION

• Manufacturer's Hardware Warranty: 3 years.
• All specifications subject to change without notice.

*10G only. Does not support 2.5G or 5G
