Netgate® 8300 Sliding Rail Kit

The sliding rail kit enables simple, safe and fast installation of the Netgate^® 8300 appliance into a standard 19-inch server rack.

Improve the accessibility of your rackmount appliance with this easy-to-install sliding rail kit.

• Makes it easier to install and access your rackmounted system.

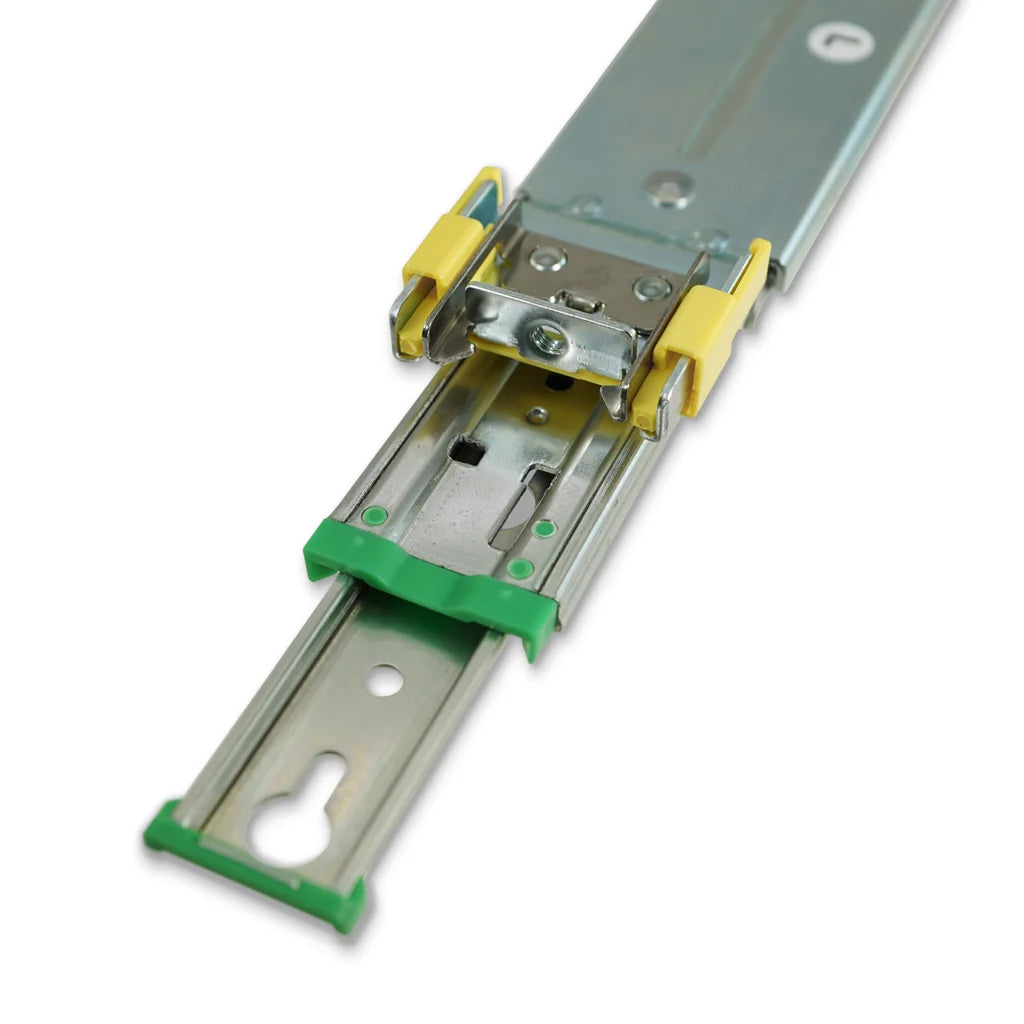

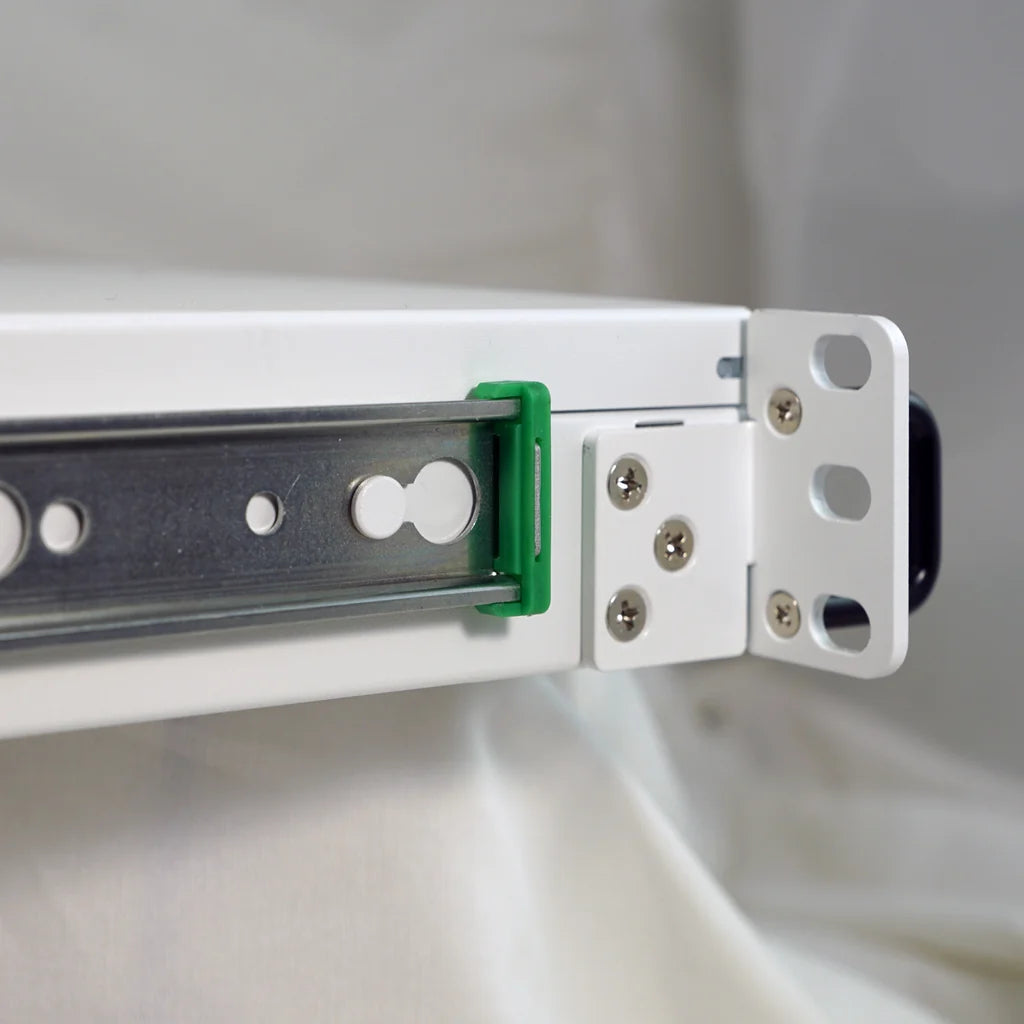

• Tool-free slides attach in seconds to the integrated chassis standoffs.
• Rail brackets snap into the 3/8-inch square holes of a four-post rack without tools.
• Ball bearings provide smooth and quiet movement with a long operating life.
• Maximum system slide travel of 29.4 inches.

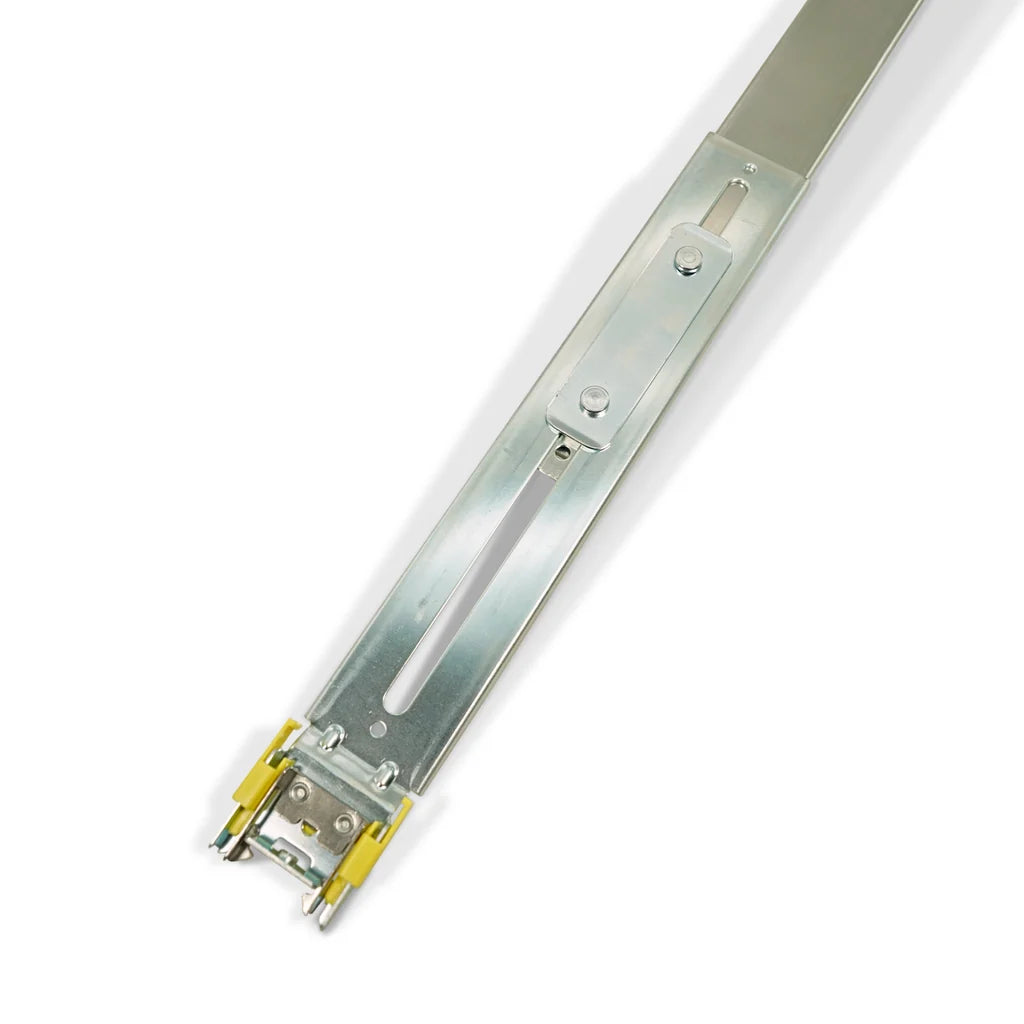

• Telescoping rail brackets fit rack and cabinet depths between 28 and 34 inches.
• UL-rated for a system weight of up to 100lb.
• Constructed from RoHS-compliant zinc-electroplated steel.

Kit Includes

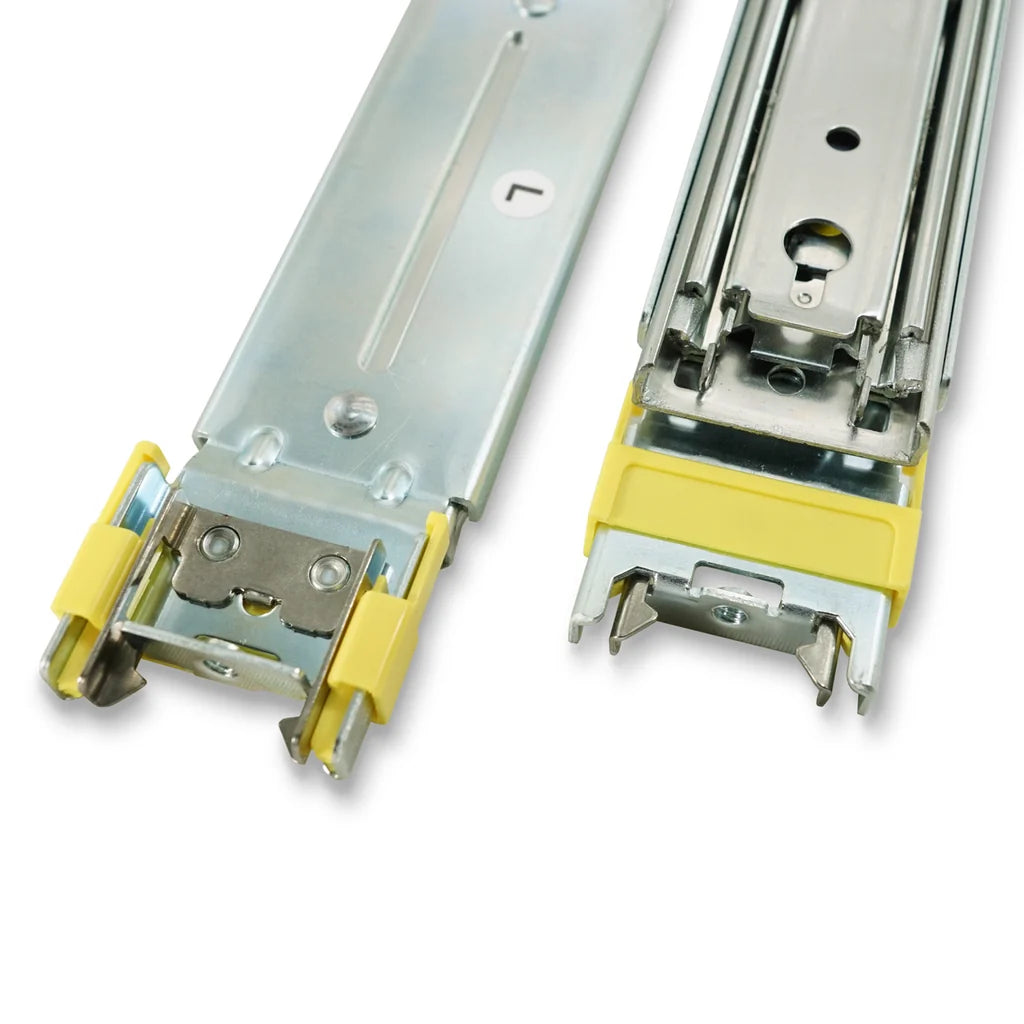

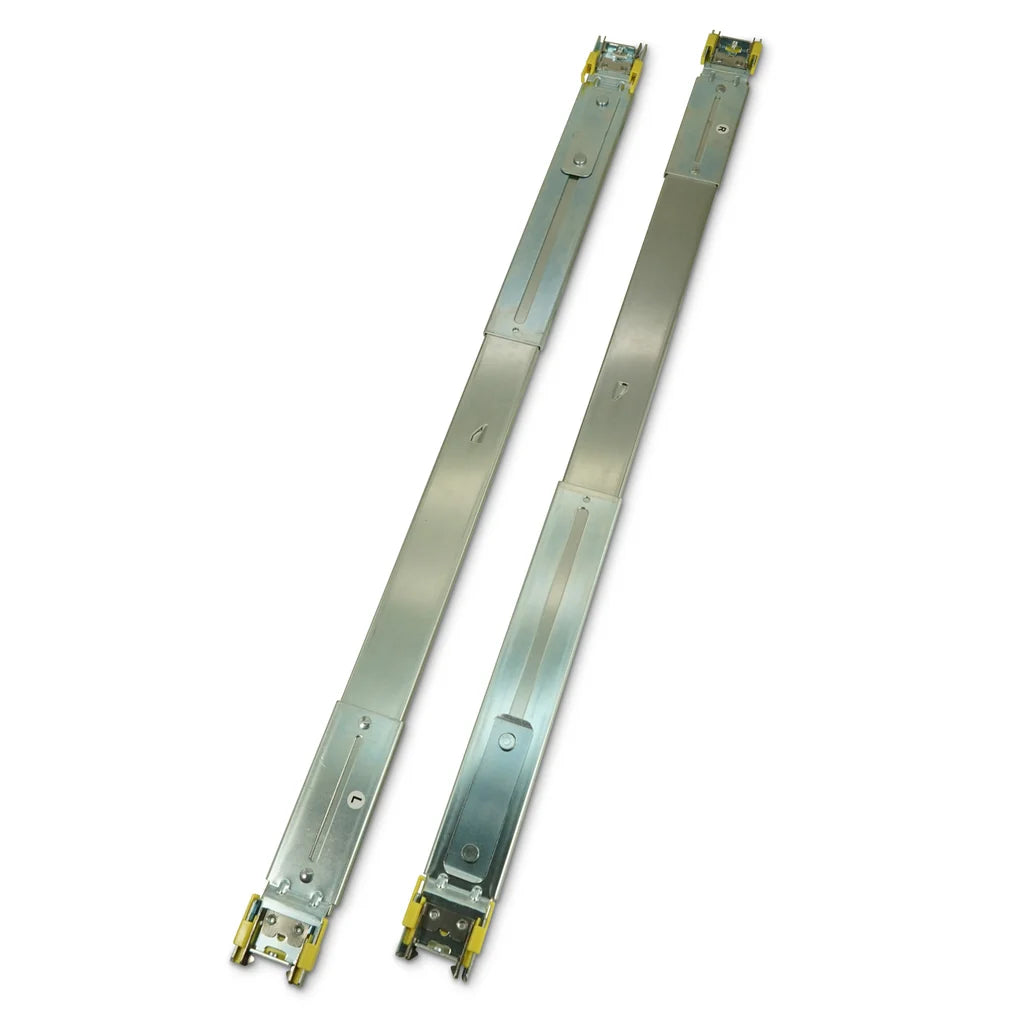

• One pair of steel sliding rail brackets: one left-side bracket and one right-side bracket.
• Two M4-0.7 × 6mm screws for locking the slide members to the chassis.
• Four M5-0.8 × 25mm screws for securing the system ears to the 19-inch vertical rack posts.

You Will Also Need

• Netgate 8300 Base or Netgate 8300 Max.
• A 19-inch EIA-standard four-post rack or cabinet with square mounting holes.
• A No. 2 Phillips screwdriver.
• Instructions and PDF templates for inboard and outboard mounting are available on the Netgate documentation website.

ADDITIONAL INFORMATION:

• View the installation guide.
• Requires an EIA-standard four-post rack with 3/8-inch square holes at 5/8-inch spacing.
• Not compatible with vertical mounting rails that have threaded holes.
• Not compatible with 1/2-inch hole spacing.
• Please consult a qualified tradesperson when you are unsure whether the rail kit is suitable for your installation.
• Telescoping slides fit rack depths between 28 and 34 inches, measured between the inside edges of the front and rear vertical rack posts.
• Side clearance: 9.5mm.
• Appliances shown in product images are for display purposes only and are not included with the rail kit.
• Minimum dimensions without an appliance installed and with the slides retracted:
  • 28 × 1.6 inches
  • 711 × 41mm
• Rail weight:
  • 5.44lb / 2.46kg
• Dimensions with a Netgate 8300 mounted and the slides retracted and secured:
  • 19 × 13 × 1.72 inches
  • 482.6 × 330 × 43.8mm
  • Weight: 20.77lb / 9.42kg

Dimensions exclude the system handles and hot-swappable power supply protrusions.

WARRANTY AND SUPPORT INFORMATION:

• Technical assistance is available from Netgate Global Support 24 hours a day, 365 days a year.
• Additional help is available through the Netgate Community Forum.
• One-year manufacturer's warranty.
• Standard 30-day return policy. Telappliant does not sell returned or second-hand products. An open-box fee may apply.
• All specifications are subject to change without notice.

PRO TIP

• Take a photograph of the label on the bottom of your Netgate appliance before installation. It is a good idea to keep a record of the serial number and other information shown on the label before installing the system in a server rack, as the label may be difficult to read once the appliance is mounted.
