Description

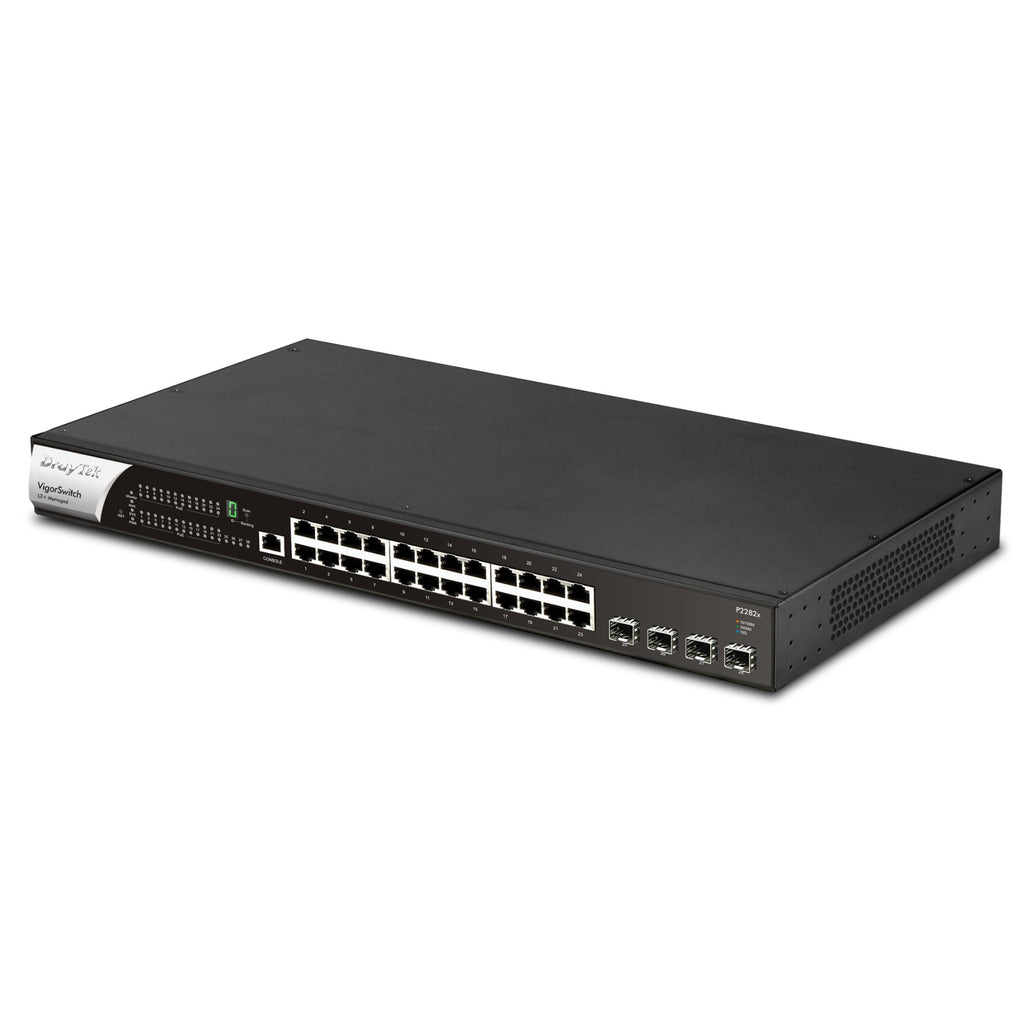

The DrayTek VigorSwitch P2282x is a powerful 24-port Gigabit PoE+ managed network switch designed for businesses, offices and professional network installations requiring reliable wired connectivity, Power over Ethernet and advanced network management.
With 24 Gigabit Ethernet ports featuring PoE+, the VigorSwitch P2282x can provide both network connectivity and power to compatible devices such as IP phones, wireless access points, IP cameras and other PoE-enabled equipment. It also features 10G SFP+ uplink ports, providing high-speed connectivity to core switches, servers and other network infrastructure.
With advanced Layer 2 management features including VLAN, QoS, link aggregation, IGMP Snooping, Spanning Tree Protocol and PoE management, the VigorSwitch P2282x provides the flexibility required for modern business networks.
Key Specifications
- 24 x RJ-45 Gigabit Ethernet Ports
- 4 x SFP+ 10GbE Ports for Uplink / Fibre
- VigorSwitch P2282x only: PoE+ on all RJ-45 ports
- VigorSwitch P2282x only: 400-watt Power-over-Ethernet budget
- 802.1q VLANs (Tag, Port & MAC-based)
- VLAN Routing & Static Route with DHCP server / relay
- Virtual Router Redundancy Protocol
- QoS for Application traffic prioritisation
- 802.1x RADIUS / TACACS+ Port Authentication with Accounting
- Voice VLAN for QoS (OUI Mode)
- Access Control List (ACL)
- Port Mirroring & Link Aggregation
- IGMP Snooping/Querier (Up to 256 Multicast Groups)
- IPv4 and IPv6 Support
- Hardware Monitoring
- Centrally managed or standalone operation
- Console Port
Technical Specification (UK Hardware Spec.)
-
Physical Interfaces
- 24 RJ-45 Ethernet Ports – 10/100/1000Mbps
- 4 SFP+ Ports – 1000Mbps/10Gbps
- Console Port (RJ-45 physical, RS-232 electrical)
- Factory Reset Button
- Stacking Scan Button – NEW!
- AC Power Socket
- DC Backup Power Input – NEW!
-
PoE Specification
- 24-ports 802.3af & 802.3at (High Power) PoE PSE
- 400 Watts Total Power Budget for PoE
- Up to 30 watts per port
- Auto Detection of Powered Device (PD) and Consumption Levels
- Per Port PoE Status LED Indicators
- Alert LED for high PoE Usage
- Port Power Consumption Monitoring via Web Interface & CLI
- Circuit Protection to Prevent Power Interference between Ports
- PoE PD Monitoring & Maintenance Features (per port)
- Scheduling
- PoE PD Priority
- Restart PoE PD if not responding to ping
- Restart PoE IP Camera if not providing camera output
-
VLAN
- 802.1q Tag-based VLAN
- Port-based and MAC-based VLANs
- QinQ (Basic)
- GVRP – General VLAN Registration Protocol
- Up to 512 VLANs (out of 4096 VLAN IDs)
- 802.1v Protocol-Based VLAN
- Voice VLAN (OUI Mode)
- Surveillance VLAN (OUI Mode)
- Protocol VLAN
- MAC-based VLAN
- Management VLAN
- Port Isolation
-
QoS
- Support 8 priority queues
- Port-Based rate control (Ingress & Egress)
- Priority queue schedule (WRR or Strict Priority)
- Rate Limit
- Class of Service
- 802.1p CoS
- DSCP
- CoS-DSCP
- IP Precedence ToS
-
Network Security
- IP Source Guard with ARP inspection
- Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
- DoS Attack protection
- AAA Authentication
- MAC Authentication
- Protected Port / Port Isolation
- Static Port Security
- Dynamic ARP Inspection
- DHCP Snooping with Option 82
- Loop Detection & Prevention
- Access Control Lists (ACL)
- Up to 512 ACL Entries
- Source and destination MAC
- VLAN ID
- IPv4/v6 address
- Protocol
- TCP/UDP port
-
Spanning Tree
- Spanning Tree Protocol (STP)
- Rapid Spanning Tree Protocol (RSTP)
- Multiple Spanning Tree Protocol (MSTP)
-
Link Aggregation
- Combine multiple ports to increase bandwidth
- 8 Aggregation Groups
- Up to 8 ports in each group
- LACP or Static setup
- Supports traffic load balancing
-
Networking Performance
- Switching Capacity: 128Gbps
- Forwarding Rate: 95.2Mpps
- MAC Addresses Supported: 16,000
- Jumbo Frames up to 12KB
- Packet Buffer size: 12Mbit
- Layer 3 Routing Table: Up to 500 Entries
-
Multicast
- Up to 256 multicast groups
- Multicast Group Filtering / Throttling
- IGMP Snooping V2/V3 (BISS)
- IGMP V2/V3 Querier
- Multicast VLAN registration
- MLD Snooping V1/V2
- Immediate Leave
- Report Suppression
- IGMP/MLD Querier
-
AAA
- RADIUS / TACACS+ Authentication for Management
- Multiple AAA Server
- MAC / Inaccessible Authentication bypass
- RADIUS Authentication 802.1X
- Accounting
- Guest VLAN
- Port based Authorisation
- 802.1X Single/Multi
- MAC-based
- Web-based
- Attribute Assignment
- User Privilege
- VLAN
- TACACS+ Authentication
- Port Authorisation
- Accounting
-
ONVIF Surveillance Management
- Discovery of ONVIF-compliant IP Cameras
- Surveillance Topology
- Real-Time Video Streaming
- ONVIF Device Maintenance
- Device Information
- Network Settings Configuration
- Time Settings
- Reboot
- Reset to Factory Default Settings
- Ping Check with Mail Alert on disconnection
-
Management
- Web User Interface (HTTP or HTTPS)
- HTTP (non-TLS) can be disabled for increased security
- Command Line Interface (CLI) via SSH/Telnet
- Console Port (RJ45) for CLI management
- Central Management
- VigorACS
- VigorConnect
- Vigor Router Switch Management
(requires router firmware support)
- Running/Startup/Backup Configuration
- Configuration Backup/Restore
- Factory Default
- System Reboot
- sFlow
- IPv4 & IPv6 Dual-Stack
- Virtual Stacking – Single IP Management ^
- LLDP(802.1ab) + MED
- Firmware Upgrade/Backup by HTTP/HTTPS
- Dual Firmware Image (Active & Backup Firmware)
- OpenVPN Client with Certificate-based auth
- ONVIF – IP Camera Management
- SNMP v1, v2c, v3 (with Generic Traps)
- RMON Groups 1, 2, 3, 9 (History, Statistics, Alarms, Events)
- SNTP (Simple Network Time Protocol)
-
Diagnostics
- Port Status & Usage display
- CPU/RAM Usage display
- MAC Address Table
- Device Check
- Syslog
- Mail Alert
- Port Status
- Port Speed Change
- System Restart
- IP Conflict
- ONVIF IP Camera Snapshot
- Port Mirroring
- Ping Diagnostics
- Port-based Cable Test
-
Hardware Monitor
- Remote Monitoring through Web Interface & VigorACS *
- Hardware Monitor Data Recording & Graphing
- Temperature Monitoring
- Voltage Monitoring
- Smart Fan Control for low noise operation
-
Layer 3 Networking Features
- Static Route
- VLAN Routing
-
IPv4 Features
- DHCP Client
- DNS Client
- DHCP Server
- Option 82, 66, 67
- DHCP Relay
- DHCP Snooping
- DHCP IP Source Guard
-
IPv6 Features
- Auto Configuration
- Static IPv6 Address & Prefix Length
- Static IPv6 Default Gateway
- IPv6 Neighbour Discovery (ND)
- IPv6 Duplicate Address Detection
- ICMPv6
- DHCPv6 Client
-
General IEEE Standards Compliance
- 802.3 10Base-T
- 802.3u 100Base-T
- 802.3ab 1000Base-T
- 802.3ae 10GBase-T
- 802.3x Flow Control Capability
- 802.3 Auto-negotiation
- 802.3ad Port trunk with LACP
- 802.3az Energy Efficient Ethernet
- 802.1q VLAN
- 802.1p Class of Service
- 802.1d Spanning Tree
- 802.1w Rapid Spanning Tree
- 802.1s Multiple Spanning Tree
- 802.1x Port Based Network Access Control
- 802.1ab Link Layer Discovery Protocol (LLDP)
- 802.1ad QinQ
- 802.3af PoE
- 802.3at PoE+
-
Operating Requirements
- AC Power Input Requirements: 100-240VAC
- AC Power supply: Internal
- Power backup input: DC +12V @ 5A & DC +54V @ 7.4A
- Maximum Input Power Consumption: 460.4 Watts
- Cooling: Smart Fan
- Operating Temperature: 0 °C to 50 °C
- Storage Temperature: -20 °C to 70 °C
- Operating Humidity: 10% to 90% RH (non-condensing)
- Storage Humidity: 5% to 90% RH (non-condensing)
- BTU per Hour:
- 1570.95 BTU/hr
-
Physical Specifications
- Dimensions (W x D x H):440 x 281 x 44 mm
- Weight (excluding SFP modules/cables): 4.26 kg
- Rack mountable: 1U
- Brackets included for rack mounting
-
Box Contents
- VigorSwitch P2282x Network Switch
- UK IEC13 Power Cable
- 1U Rack Mount Fittings
- Console Cable
- Quick Start Guide
-
ROHS, UKCA & CE Compliant
-
Warranty
- Standard: Two (2) Year, RTB
- Software security updates
3 years after the EOL notification. Please note that this only applies to products sold in the UK - Optional VigorCare Enhanced Warranty Available
- VigorCare D3 3 Year Subscription: VCARE-D3
- VigorCare D5 5 Year Subscription: VCARE-D5
