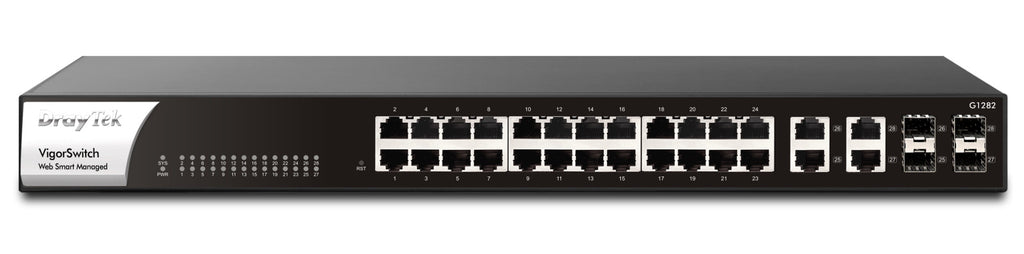

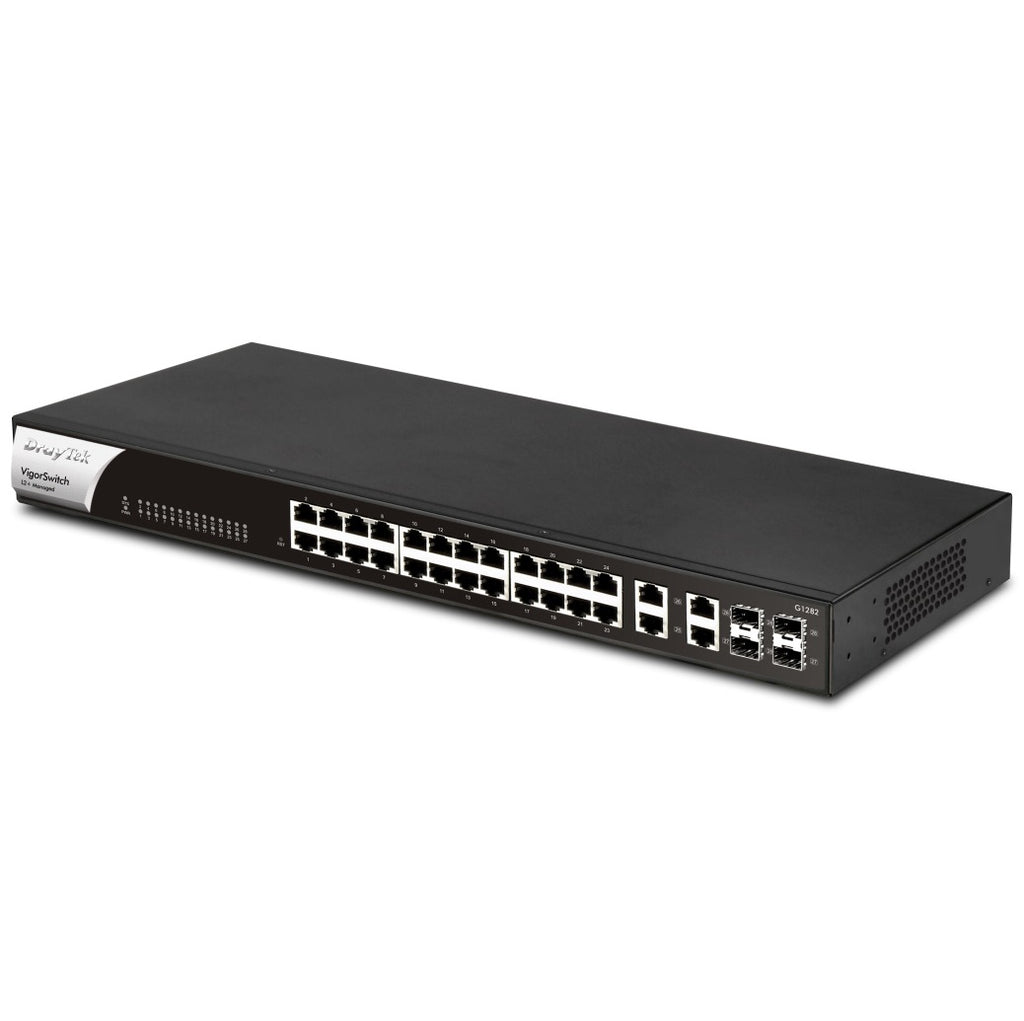

The DrayTek VigorSwitch G1282 is a high-performance 24-port Gigabit managed network switch designed for businesses, offices and professional network installations requiring reliable connectivity, advanced VLAN management, network security and flexible fibre uplink options.

Featuring 24 x 10/100/1000Mbps Gigabit Ethernet ports plus 4 selectable Gigabit RJ45/SFP ports, the VigorSwitch G1282 provides a flexible solution for expanding wired networks and connecting switches over copper or fibre. The switch can operate independently or be centrally managed using DrayTek VigorACS, VigorConnect or a compatible DrayTek Vigor router.

Key Specifications

• 24 x RJ-45 Gigabit Ethernet Ports
• 4 x RJ-45 / SFP Gigabit Ethernet Ports
• Cloud Managed with VigorACS
• 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
• ONVIF IP Camera Surveillance Management
• Access Control List (ACL) for port & traffic level security
• Port Mirroring & Link Aggregation
• IGMP Snooping & Querying
• IPv4 and IPv6 Support with IP Conflict Prevention
• Centrally managed or standalone operation

Technical Specification (UK Hardware Spec.)

Physical Interfaces

• 24 RJ-45 Ethernet Ports – 10/100/1000Mbps
• Factory Reset Button
• 4 Selectable Ports (Nos. 25-28), use as either:
  • 10/100/1000BaseT (Gigabit) Ethernet
  • or SFP (1000M) Ports for Uplink / Fibre

VLAN

• 802.1q Tag-based VLAN
• Port-based & MAC-based VLANs
• Up to 512 VLANs (out of 4096 VLAN IDs)
• Voice VLAN (OUI Mode)
• Surveillance VLAN (OUI Mode)
• Management VLAN
• Port Isolation (Protected Ports)

QoS

• Support 8 priority queues
• Port-Based rate control (Ingress & Egress)
• Priority queue schedule (WRR or Strict Priority)
• Rate Limit
• Class of Service
  • 802.1p CoS
  • DSCP
  • CoS-DSCP
  • IP Precedence ToS

Network Security

• IP Source Guard with ARP inspection
• IP Conflict Prevention
• Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
• DoS Attack protection
• Protected Port / Port Isolation
• Static Port Security
• Loop Detection & Prevention
• Access Control Lists (ACL)
  • Up to 512 ACL Entries
  • Source and destination MAC
  • VLAN ID
  • IPv4/v6 address
  • Protocol
  • TCP/UDP port

Spanning Tree

• Spanning Tree Protocol (STP)
• Rapid Spanning Tree Protocol (RSTP)

Link Aggregation

• Combine multiple ports to increase bandwidth
• 8 Aggregation Groups
• Up to 8 ports in each group
• LACP or Static setup
• Supports traffic load balancing

Networking Performance

• Switching Capacity: 56Gbps
• Forwarding Rate: 41.7Mpps (64 bytes)
• Jumbo Frames up to 9KB
• Packet Buffer size: 4.1Mbit
• MAC Address Table: 8000 entries

Multicast

• Up to 256 multicast groups
• Multicast Group Filtering / Throttling
• IGMP Snooping V2/V3 (BISS)
• IGMP V2/V3 Querier
• Multicast VLAN registration

ONVIF Surveillance Management

• Discovery of ONVIF-compliant IP Cameras
• Surveillance Topology
• Real-Time Video Streaming
• ONVIF Device Maintenance
  • Device Information
  • Network Settings Configuration
  • Time Settings
  • Reboot
  • Reset to Factory Default Settings
  • Ping Check with Mail Alert on disconnection

Management

• Central Management
  • VigorACS
  • VigorConnect
  • Vigor Router Switch Management
    (requires router firmware support)
• IPv4 & IPv6 Dual-Stack
• Web User Interface
• Firmware Upgrade/Backup
• Configuration Backup/Restore
• Factory Default
• System Reboot
• 2-level Admin Privileges
• Multiple Admin Accounts
• Command Line Interface (CLI) via SSH/Telnet
• OpenVPN Client with Certificate-based auth
• SNMP v1, v2c, v3 (with Generic Traps)
• SNTP (Simple Network Time Protocol)
• LLDP(802.1ab) + MED

Diagnostics

• Port Status & Usage display
• CPU/RAM Usage display
• MAC Address Table
• Device Check
• Syslog
• Mail Alert
  • Port Status
  • Port Speed Change
  • System Restart
  • Device Check
  • IP Conflict
  • ONVIF IP Camera Snapshot
• Port Mirroring
• Ping Diagnostics
• Port-based Cable Test

IPv4 Features

• DHCP Client
• DNS Client

IPv6 Features

• Auto Configuration
• Static IPv6 Address & Prefix Length
• Static IPv6 Default Gateway
• IPv6 Neighbour Discovery (ND)
• IPv6 Duplicate Address Detection
• ICMPv6
• DHCPv6 Client

General IEEE Standards Compliance

• 802.3 10Base-T
• 802.3u 100Base-T
• 802.3ab 1000Base-T
• 802.3x Flow Control
• 802.3 Auto-Negotiation
• 802.1q Tag-based VLAN
• 802.1p Class of Service
• 802.1d STP
• 802.1w RSTP
• 802.3ad LACP
• 802.1AB LLDP
• 802.3az EEE

Operating Requirements

• Power Input Requirements: 100-240VAC
• Power supply: Internal
• Maximum Input Power Consumption: 36 Watts
• Cooling: Passively cooled, no fan
• Operating Temperature: 0 °C to 50 °C
• Storage Temperature: -20 °C to 70 °C
• Operating Humidity: 10% to 90% RH (non-condensing)

Physical Specifications

• Dimensions: 441 x 206 x 44 mm (W x D x H)
• Rack mountable: 1U
• Weight: 2.8 Kg

Box Contents

• VigorSwitch G1282 Network Switch
• UK IEC13 Power Cable
• 1U Rack Mount Fittings
• Quick Start Guide

ROHS & CE Compliant

Warranty

• Two (2) Year Manufacturer's RTB
• Optional VigorCare Enhanced Warranty Available
  • VigorCare C3 3 Year Subscription: VCARE-C3
  • VigorCare C5 5 Year Subscription: VCARE-C5
