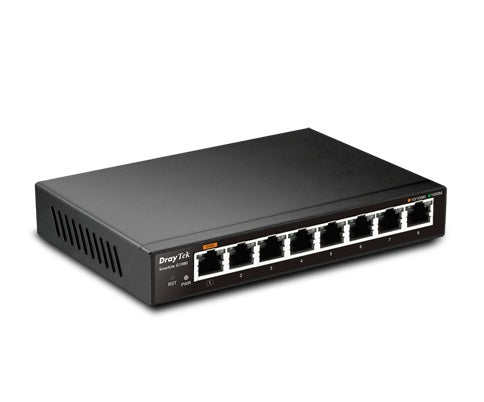

The DrayTek Vigor G1080 is a compact and reliable 8-port Gigabit Ethernet unmanaged switch, designed to provide fast and stable wired network connectivity for homes, offices and small business environments.

With 8 Gigabit Ethernet ports, the Vigor G1080 allows you to connect computers, printers, network storage, IP cameras, access points, smart TVs and other Ethernet-enabled devices to your network. Its compact design makes it an ideal choice when additional Gigabit network ports are required without the complexity of a managed switch.

• 8 Port Gigabit Managed Switch
• Ultra compact form factor
• Wall Mountable
• Fanless (Silent) Operation
• Ultra-low power consumption
• Can be powered by USB port on PC or router
  (requires optional USB/DC cable 'HVUSB1')
• 802.3az Power Saving
• 802.1q VLANs (Tag & Port-based)
• QoS for Application traffic prioritisation
• Link Aggregation (LACP) for ports 7 & 8
• IGMP Snooping (Up to 128 Multicast Groups)
• Manageable by compatible DrayTek Router (SWM) or standalone operation

Technical Specification (UK Hardware Spec.)

• Physical Interfaces:

  • 8x 10/100/1000BaseT Ethernet Ports (RJ-45 IEEE 802.3/3u/ab)

• VLAN:

  • Tag-based VLAN - 802.1q
  • Port-based VLAN
  • Up to 8 VLANs

• Quality of Service:

  • Support 4 priority queues
  • Port-Based rate control
  • Priority queue schedule (WFQ or Strict Priority)
  • Class of Service
    • 802.1p CoS

• Link Aggregation:

  • Combine ports 7 & 8 to increase bandwidth to LACP capable switches or servers
  • Supports traffic load balancing

• Network Security:

  • Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)

• Network Features:

  • IPv4
  • Network Loop Detection & Prevention
  • MAC Addresses Supported: 4K
  • Jumbo Frames up to 9 KB

• IGMP Snooping:

  • Up to 128 multicast groups
  • IGMP Snooping V2
  • IGMP V2
  • Immediate Leave

• Management:

  • Web User Interface (HTTP)
  • Firmware Upgrade/Backup by HTTP
  • Configuration Backup/Restore
  • Factory Default
  • System Reboot
  • Central Management
  • DrayTek Switch Management support (from routers)
  • DrayTek VigorConnect

• Diagnostics:

  • Port Status & Usage display
  • Port Mirroring

• General IEEE Standards Compliance:

  • 802.3 10Base-T
  • 802.3u 100Base-T
  • 802.3ab 1000Base-T
  • 802.3x Flow Control Capability
  • 802.3 Auto-negotiation
  • 802.1Q VLAN
  • 802.1p Class of Service
  • 802.3ad Port trunk with LACP
  • 802.1az Energy Efficient Ethernet

• Operating Requirements:

  • Power Input Requirements: 220-240VAC
  • Power supply: External 5V/1A (included)
  • Operating Temperature:~0 °C to ~40 °C
  • Storage Temperature:-20 °C to ~70 °C
  • Operating Humidity: 10% to 90% RH (non-condensing)

• Physical Specifications:

  • Dimensions: 154 x 85 x 26 mm (W x D x H)
  • Rack mountable: No
  • Wall mountable : Yes
  • Weight: 325g (excluding cables)

• ROHS & CE Compliant

• Warranty

  • Two (2) Year Manufacturer's RTB
  • Optional VigorCare Enhanced Warranty Available
    • VigorCare A3 3 Year Subscription: VCARE-A3
    • VigorCare A5 5 Year Subscription: VCARE-A5

Box Contents

• VigorSwitch G1080 Network Switch
• UK Power Adapter
• Quick Start Guide
