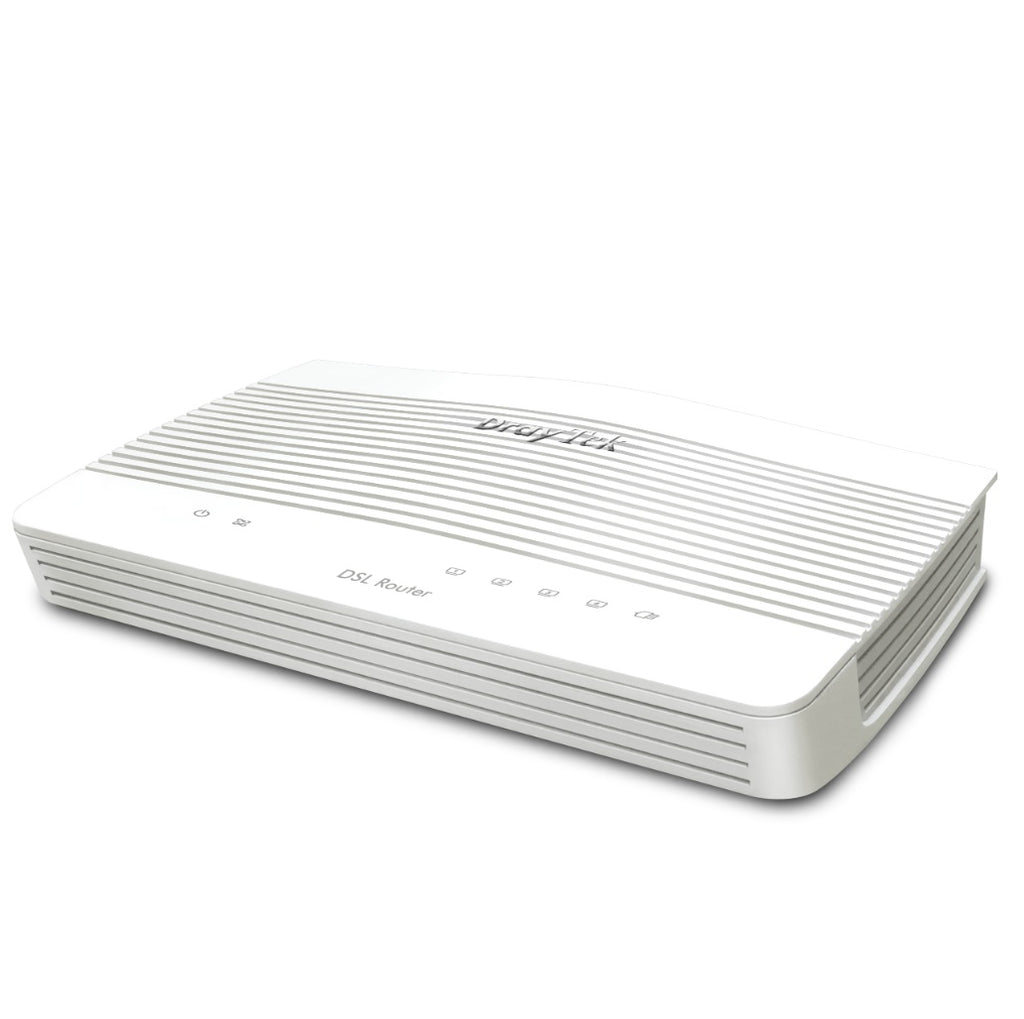

The DrayTek Vigor 2763 is a powerful VDSL2 and ADSL2+ wired broadband router designed for homes, small businesses and professional networks that require reliable internet connectivity, advanced network management and strong security without built-in Wi-Fi.

Supporting VDSL2 Superfast Fibre and ADSL2+ broadband, the Vigor 2763 combines an integrated DSL modem with a high-performance router, firewall and VPN solution. It also features Gigabit Ethernet connectivity, allowing it to be used with Ethernet-based broadband services and modern network equipment.

With advanced features including VPN, VLAN support, Quality of Service (QoS), firewall protection, bandwidth management and Multi-WAN failover, the DrayTek Vigor 2763 is an excellent choice for business users and network administrators who need greater control over their internet connection.

Key Specifications

• VDSL2 (Superfast Fibre) or Gigabit Ethernet WAN Router with Failover
• Up to 950Mbps Firewall Throughput for Ethernet WAN
• 4 Gigabit LAN Ports
• 4 LAN Subnets with VLANs (Port-based / 802.1q)
• SPI Firewall and Content Filtering
• Up to 150Mbps IPsec VPN Throughput
• 2 LAN-to-LAN or Remote Teleworker VPN Tunnels
• DrayTek SSL VPN and OpenVPN support
• Optional VigorCare Available
• Can be centrally Managed by VigorACS

Technical Specification (UK Hardware Spec.)

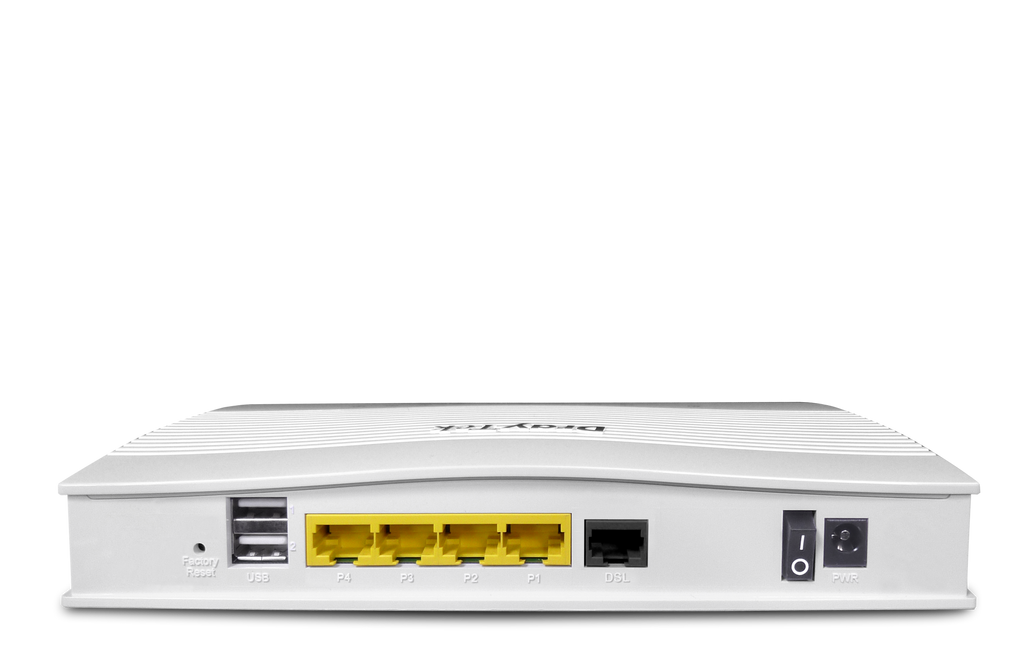

Physical Interfaces

• WAN1: VDSL2 / ADSL2+, RJ-11
• WAN2/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
• WAN3: USB 2.0 Port for 3G/4G Modem (not included)
• LAN Ports: 4x Gigabit Ethernet (1G/100M/10M), RJ-45 (3x with WAN2 enabled)
• 2x USB 2.0 Port for USB storage, thermometer or Printer
• Recessed Factory Reset button

Performance

• Router Performance:
  • 100 Mb/s Max Sync Rate with VDSL2
  • 950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
  • 700 Mb/s NAT Throughput per WAN without Hardware Acceleration
  • 50,000 NAT Sessions
• VPN Performance:
  • 150 Mb/s IPsec (AES256) VPN Throughput
  • 80 Mb/s SSL VPN Throughput
  • Max. 2 Concurrent VPN Tunnels

Internet Connection

• Hardware Acceleration
• 802.1p/q Multi-VLAN Tagging
• Multi-VLAN/PVC
• Connection Detection: PPP, ARP Detect, Ping Detect
• WAN Data Budget
• Dynamic DNS
• DrayDDNS – with automated LetsEncrypt Certificates
• Full Feature-set Hardware Acceleration:
  • Hardware Accelerated Quality of Service
  • Multi-WAN Data Budget
  • Traffic Graph & Data Flow Monitor
  • Bandwidth Limit
• IPv4 Connection Types:  PPPoE / PPPoA, MPoA, DHCP, Static IP, PPTP/L2TP (Ethernet WAN)
• IPv6 Connection Types:
  • DSL & Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
  • USB 4G/LTE Modem: TSPC, AICCU

VDSL & ADSL Features

• BT Infinity Option 1 & Option 2 Compatible
• Compliant with Openreach SIN 498
• Auto Detection of VDSL and ADSL line modes
• Support for G.INP (G.998.4) & Vectoring (G.993.5)
• VDSL Standards:
  • ITU-T G.993.1 VDSL
  • ITU-T G.993.2, G.997.1 VDSL2
  • Band Plan: G.998, G.997
  • Annex A, Annex B, Annex C
  • VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a (not 35b or G.fast)
  • OLR, UPBO, DPBO Supported
  • US0 Supported
  • Loop Diagnostic Mode
  • DSL Forum WT-114, TR048/67, TR-100
• ADSL Standards:
  • ANSI T1.413 Issue2
  • ITU-T G.992.1 G.dmt (ADSL)
  • ITU-T G.992.2 G.lite
  • ITU-T G.992.3 ADSL2 including Annex M/J
  • ITU-T G.992.5 ADSL2+ including Annex M/J
• ATM Protocols:
  • RFC-2684/RFC-1483 Multiple Protocol over AAL5
  • RFC-2516 PPP over Ethernet
  • RFC-2364 PPP over AAL5
  • Support for RFC4638 for MTU up to 1500

Firewall & Content Filtering

• IP-based Firewall Policy
• User-based Time Quota
• DoS Attack Defence
• Spoofing Defence
• Content Filtering:
  • Application Content Filter
  • URL Content Filter
  • DNS Keyword Filter
  • Web Features
  • Web Category Filter (requires GlobalView subscription)
  • DoH (DNS over HTTP) & DoT (DNS over TLS) Filtering - New!

NAT Features

• NAT Port Redirection
• Open Ports
• Port Triggering
• DMZ Host
• UPnP
• ALG (Application Layer Gateway):  SIP, RTSP, FTP, H.323
• VPN Pass-Through:  PPTP, L2TP, IPsec

LAN Management

• 802.1q Tag-based, Port-based VLAN
• Up to 4 LAN Subnets
• Up to 8 VLANs
• DHCP Server:
  • Multiple IP Subnet
  • Custom DHCP Options
  • Bind-IP-to-MAC
  • DHCP Pool Count up to 253 addresses per subnet
• Wired 802.1x Port Authentication
• Port Mirroring
• Local DNS Server
• Conditional DNS Forwarding

Networking Features

• Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
• DNS Security (DNSSEC)
• Local RADIUS server
• SMB File Sharing (Requires external USB storage)
• Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
• Compatible with IPTV and ISP Video on Demand services (YouView, Sky Q)
• Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing

VPN Features

• 2 Concurrent active VPN Tunnels
• LAN-to-LAN - Dial-Out VPN Client / Dial-In VPN Server
• Teleworker-to-LAN – Dial-In VPN Server
• IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
• Encryption: MPPE, DES, 3DES, AES (128/192/256)
• Authentication: SHA-256, SHA-1
• Dead Peer Detection (DPD)
• IPsec NAT-Traversal (NAT-T)
• Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
• DHCP over IPsec
• DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT - New!
• VPN Protocols:
  • IPsec IKEv1, IKEv2, IKEv2 EAP
  • IPsec-XAuth
  • DrayTek SSL VPN
  • OpenVPN
  • PPTP for legacy applications
  • L2TP, L2TP over IPsec
• User Authentication:
  • Local
  • RADIUS
  • mOTP - Mobile One Time Password
  • TOTP - Time-based One Time Password, compatible with Google Authenticator - New!

Bandwidth Management

• IP-based (IPv4 & IPv6) Bandwidth Limit
• App-based Bandwdith Limit - New!
• IP-based (IPv4 & IPv6) Session Limit

Quality of Service (QoS)

• Classify via TOS, DSCP, 802.1p, IP Address, Service Type
• 4 Priority Queues
• App QoS
• VoIP Prioritization
• Class-based Outbound Traffic Tagging: DSCP & IP Precedence
• Hardware QoS - New!

Management

• Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
• Config File Export & Import
• Import Config from Vigor 2760, 2762, 2765, 2766
• Auto Backup Config to USB Storage – New!
• Firmware Upgrade via TFTP, HTTP, TR-069
• 2-Level Administration Privilege
• Access Control Features: Access List, Brute Force Protection
• Syslog
• SMS, E-mail Notification Alert
• SNMP: v1, v2c, v3
• Managed by VigorACS

Router Central Management Features

• AP Management: 2 VigorAP access points

Operating Requirements

• Wall or Shelf Mountable
• Temperature Operating: 0 °C ~ 40 °C
• Storage: -25 °C ~ 70 °C
• Humidity 10% ~ 90% (non-condensing)
• Power Consumption: 15 Watts maximum
• Operating Power: DC 12V (via external PSU, supplied)
• Power Requirements : 100-240VAC
• Dimensions:
  • 207mm Width
  • 131mm Depth
  • 42mm Height

Warranty

• Two (2) Years RTB
• Optional VigorCare Enhanced Warranty Available
  • VigorCare A3 3 Year Subscription: VCARE-A3
  • VigorCare A5 5 Year Subscription: VCARE-A5

Box Contents

• Vigor 2763 router
• Quick Start Guide
• Screws & wall plugs for wall mounting
• 2m Cat-5e RJ-45 Network Cable
• DC 12V Power Supply with UK Plug
